Tunneling And Underground Project

In tunneling and underground projects, drill tools play a critical role in excavation, drilling, and support operations. These tools are essential for creating tunnels, shafts, and underground spaces for various purposes, including transportation, utilities, mining, and infrastructure. Here are some drill tools commonly used in tunneling and underground projects:

Tunnel Boring Machines (TBMs):

Cutters and Discs: TBMs use rotating cutters or discs to excavate and break the rock or soil. These cutters are mounted on the TBM's cutter head and are crucial for the primary excavation process.

Rock Drills:

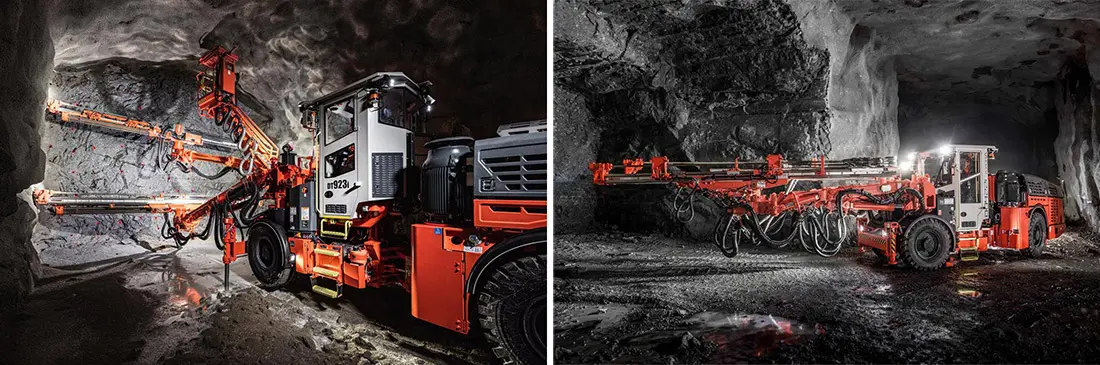

Jumbo Drills: Jumbo drills are large drilling rigs used in underground mining and tunneling. They can have multiple drill booms and are capable of drilling holes for rock reinforcement, blasting, or exploration.

Raise Boring Tools:

Reaming Heads: Raise boring tools include reaming heads that are used in raise boring operations to enlarge a pre-drilled pilot hole. The reaming head is equipped with cutting tools to create the desired diameter for the raise.

Drill and Blast Tools:

Long-Hole Drills: Long-hole drills are used for drilling holes in a horizontal or inclined pattern for the purpose of blasting. These drills are commonly used in sublevel stoping mining methods and in tunneling.

Blasthole Drills:

Blasthole drills are used to drill holes for explosive charges in tunneling and mining operations. These drills are essential for the drill and blast method of excavation.

Anchor Drills:

Bolt Drills: Anchor drills are used for installing rock bolts to support the tunnel or excavation. Bolt drills create holes for rock bolts, which are inserted to reinforce the rock mass and prevent collapses.

Grouting Equipment:

Grout Plants: Grouting is often required in tunneling projects for ground stabilization and water control. Grouting equipment includes pumps and mixers used to inject grout into the ground through boreholes.

Core Drills:

Core Barrel Systems: Core drills are used for obtaining core samples in geological exploration or for assessing the rock mass properties. Core barrel systems are equipped with diamond or tungsten carbide bits to extract cylindrical rock samples.

Shotcrete Equipment:

Shotcrete Machines: Shotcrete, or sprayed concrete, is commonly used for lining tunnel walls and providing ground support. Shotcrete equipment includes machines for mixing and spraying the concrete onto tunnel surfaces.

Horizontal Directional Drilling (HDD) Tools:

Drill Heads and Reamers: HDD tools are used for drilling horizontal or directional boreholes for utility installations. Drill heads and reamers are key components in the HDD process.

Tunnel Probe Drills:

Probe Drills: Tunnel probe drills are used to drill pilot holes for measuring and assessing geological conditions ahead of the tunnel face. They help gather information about the rock or soil properties.

The selection of drill tools in tunneling and underground projects depends on factors such as the geological conditions, tunnel design, and the purpose of the excavation. Regular maintenance and monitoring of drill tools are crucial for ensuring efficient and safe tunneling operations.
