Features:
Our products are solutions that increase the return on your rig investment by increasing drilling efficiency and reliability. Superior quality and durability with special heat treatment and stress relief for maximum performance and hole cleaning capabilities. Thread button drill bits are made of high quality alloy steel rod and tungsten carbide. Heat treatment makes our drilling tools strong enough to handle your rock drilling needs while minimizing energy loss when drilling rock. In addition, threaded drill bits can also be designed and customized according to different drilling purposes, and the customized drill bits are suitable for drilling soft rock, loose medium rock, and hard rock.
Button bit | Diameter | No×button diameter | Flushing hole | Weight approx kg | TIANYUE P/N |
mm | inch | Front | Gauge | Angle | Front | Side |
| Spherical Buttons |
33 | 1 19/64 | 2×7 | 5×7 | 35° | 1 | 1 | 0.4 | 1431-33R25-27/57-45-41 |
35 | 1 3/8 | 2×7 | 5×8 | 35° | 1 | 1 | 0.4 | 1431-35R25-27/58-45-41 |
38 | 1 1/2 | 2×7 | 5×8 | 30° | 1 | 1 | 0.5 | 1431-38R25-27/58-45-41 |
38 | 1 1/2 | 2×7 | 5×9 | 30° | 1 | 1 | 0.5 | 1431-38R25-27/59-45-41 |
41 | 1 5/8 | 2×9 | 4×9 | 35° | 1 | 2 | 0.6 | 1431-41R25-29/49-45-41 |
41 | 1 5/8 | 2×8 | 5×9 | 35° | 1 | 1 | 0.6 | 1431-41R25-28/59-45-41 |
45 | 1 3/4 | 2×9 | 4×11 | 35° | 1 | 2 | 0.6 | 1431-45R25-29/411-45-41 |
45 | 1 3/4 | 2×8 | 5×10 | 30° | 1 | 2 | 0.6 | 1431-45R25-28/510-45-41 |
45 | 1 3/4 | 2×8 | 5×11 | 30° | 1 | 2 | 0.6 | 1431-45R25-28/511-45-41 |
Parabolic Buttons |
33 | 1 19/64 | 2×7 | 5×7 | 35° | 1 | 1 | 0.4 | 1431-33R25-27/57-45-51 |
35 | 1 3/8 | 2×7 | 5×9 | 25° | 1 | 1 | 0.4 | 1431-35R25-27/59-45-51 |
38 | 1 1/2 | 2×7 | 5×9 | 40° | 1 | 1 | 0.5 | 1431-38R25-27/59-45-51 |
41 | 1 5/8 | 2×8 | 5×9 | 40° | 1 | 1 | 0.6 | 1431-41R25-28/59-45-51 |
45 | 1 3/4 | 2×9 | 5×10 | 35° | 1 | 2 | 0.6 | 1431-45R25-29/510-45-51 |
Product |
Button Bit |
Other Names | Button drill bit,Thread button bit,Thread drill bit,Rock drill bit,Top Hammer drill bit,Drill bit,Rock bit,Hard rock dilling tools,Rock dill tool,Rock tools,Top Hammer drilling tools,Mining drill bit |
Material | 23CrNi3Mo |
Application | Tunnelling, Mining, Quarrying, Ore Mining,Blasting and Infrastructure Construction,Facedrilling and Bolting, Bench Drilling, Production drilling, Long hole drilling, Drifting. |
Thread | R25, R28, R32, R35, R38, T38, T45, T51, ST58, ST68, GT60, SR28, SR35... |
Bit Type | Thread Button Bit,Retrac Button Bit,Reaming Button Bit,Cross Bit,Chisel Bit |
Skirt Design | Standard skirt, Retrac skirt, Straightrac skirt, Heavy duty skirt |
Face Design | Flat face, Drop center face, Convex face, Reaming type, Cross type |
Button Shape | Spherical buttons, Ballistic buttons, Conical buttons, Composite buttons |
Head Diameter | 28mm~152mm |
Custom Design | Size,Color |
Face Design | Application |
| Flat face button drill bits are suitable for all rock conditions, especially for the rock with higher hardness and higher abrasiveness. Such as granite and basalt |
| Convex Face button bits are designed for fast penetration rates in softer rock. |
| Drop center button drill bits are mainly suitable for the rock with low hardness, low abrasiveness, and good integrity. The bits can drill straighter holes. |
| Normal Skirt For drilling in very hard and abrasive rock formations. |
| Retract Skirt For drilling in loose,broken or fissured rock where it is difficult to retract the drill string due to the hole collapse. |
Actual pictures of drill bits
Threaded Drill Bits Retrac Button Bits Reaming Drill Bits Cross Bit Chisel Bit

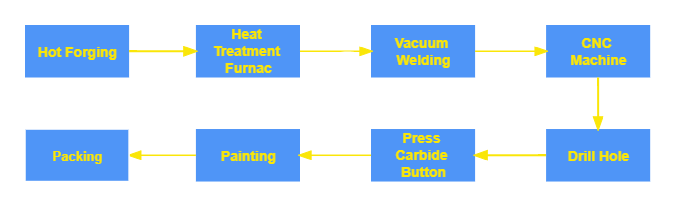

Bit process flow
